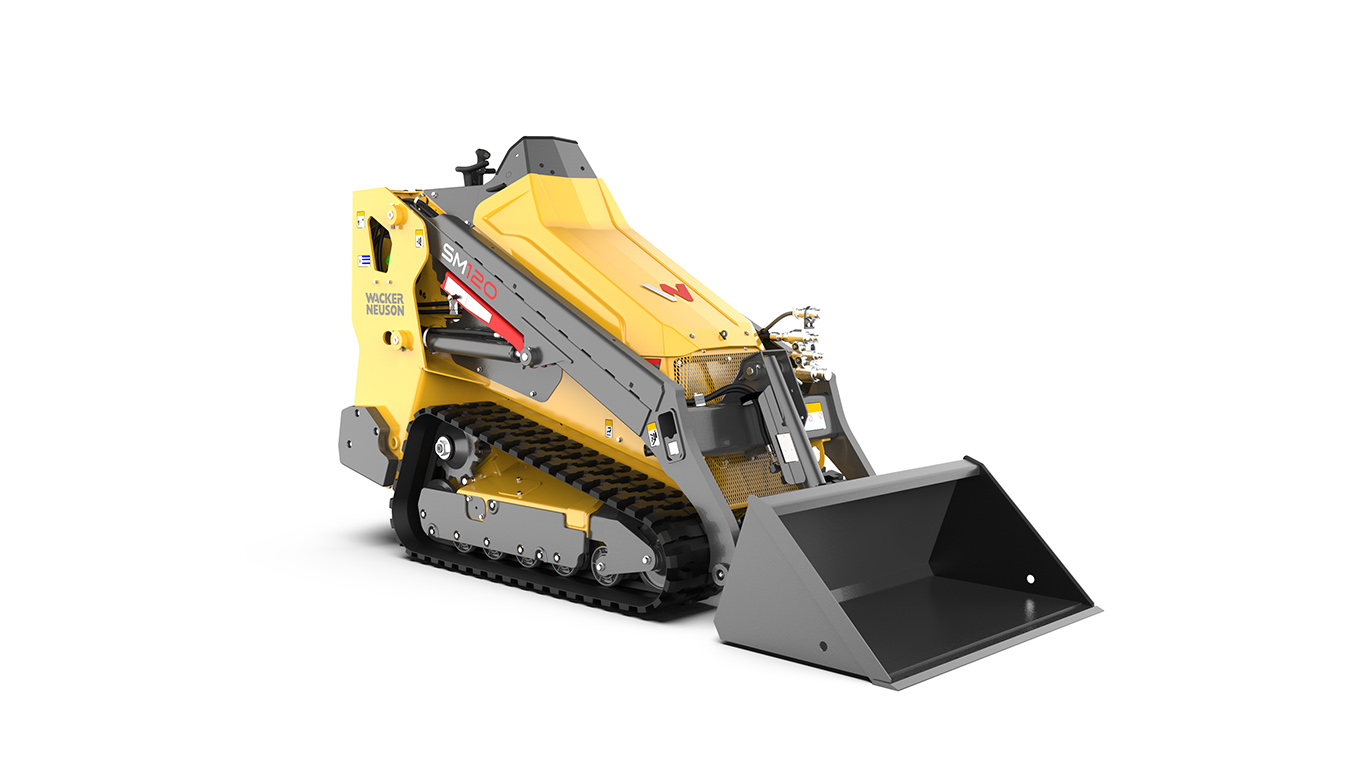

Wacker Neuson SM120
Mini Skid Steer
- Stand-on mini skid steer designed for the professional who needs to lift, move, and place more.
- Ideal for landscape, tree service, and general material handling.
- Largest of the mini skid steer series with an overall width of 41 in.
- An optional productivity package upgrade is available
Features
- Optimized radial path design provides high hinge pin height for dumping material into high-sided trucks and the reach for loading into truck beds.
- Travel speed of 5.2 mph provides for fast cycle times.
- Wide tracks (11 in.) provide ultra-low ground pressure to greatly reduce turf and soft ground disturbance.
- Large suspension operator platform for improved stability on rough terrain.
- Fine-tuned, forward-angled joysticks, position the operator's hands in a neutral position for comfortable operation.
Productivity Package Upgrade
- Ride control
- Additional weight added on to increase lift capacity.
- Additional hydraulics on the joystick
Specs
OPERATING FLUIDS | Imperial | Metric |
| Fuel Tank capacity | 16.9 gal US | 64.0 l |
NAMEPLATE | ||
| Company | PUM | PUM |
ENGINE | ||
| Cylinder | 3 | 3 |
| Power rating max. | 24.8 hp, 24.8 hp | 18.5 KW, 18.5 KW |
| Cooling | Water-cooling, Water-cooling | Water-cooling, Water-cooling |
| Engine Manufacturer | Yanmar, Yanmar | Yanmar, Yanmar |
| Cylinder capacity | 77.3 Inch3, 77.3 Inch3 | 1,266 cm3, 1,266 cm3 |
| Operating Engine speed | 2,600 1/min | 2,600 1/min |
| Operating power | 24.7 hp | 18.4 KW |
| Engine Designation | 3TNV80 FT, 3TNV80 FT | 3TNV80 FT, 3TNV80 FT |
| Maximum torque | 63.0 lb/ft, 63.0 lb/ft | 85.0 Nm, 85.0 Nm |
| Engine type | Diesel engine, Diesel engine | Diesel engine, Diesel engine |
MECHANICAL - OUTPUT DETAILS | ||
| Ground Pressure(Standard track) | 2.9 psi | 0.2 bar |
| Break Out Force Bucket | 14.39 kN | 14.39 kN |
| Break Out Force Lift Arm | 15.09 kN | 15.09 kN |
| Travel speed | 5.0 m/H | 8.1 km/h |
HYDRAULIC | ||
| Auxiliary relief pressure | 3,045.0 psi | 210 bar |
| Flow rate | 12.9 gal/mi | 49 l/min |
MECHANICAL DETAILS | ||
| Length without Bucket | 108.3 " | 2,751 mm |
| Length with Bucket | 126.0 " | 3,200 mm |
CHASSIS | ||
| ROC at 35% Tip Load | 1,225.8 lb | 556 kg |
| ROC at 50% Tip Load | 1,752.7 lb | 795 kg |
| Tip Load | 3,507.6 lb | 1,591 kg |
